Name: Project Areas

Display Field: Project_Name

Type: Feature Layer

Geometry Type: esriGeometryPolygon

Description: Davey Resource Group utilized an object-based image analysis (OBIA) semi-automated feature extraction method to process and analyze current high-resolution color infrared (CIR) aerial imagery and remotely-sensed data to identify tree canopy cover and land cover classifications. The use of imagery analysis is cost-effective and provides a highly accurate approach to assessing your community's existing tree canopy coverage. This supports responsible tree management, facilitates community forestry goal-setting, and improves urban resource planning for healthier and more sustainable urban environments. Advanced image analysis methods were used to classify, or separate, the land cover layers from the overall imagery. The semi-automated extraction process was completed using Feature Analyst, an extension of ArcGIS®. Feature Analyst uses an object-oriented approach to cluster together objects with similar spectral (i.e., color) and spatial/contextual (e.g., texture, size, shape, pattern, and spatial association) characteristics. The land cover results of the extraction process was post-processed and clipped to each project boundary prior to the manual editing process in order to create smaller, manageable, and more efficient file sizes. Secondary source data, high-resolution aerial imagery provided by each UTC city, and custom ArcGIS® tools were used to aid in the final manual editing, quality checking, and quality assurance processes (QA/QC). The manual QA/QC process was implemented to identify, define, and correct any misclassifications or omission errors in the final land cover layer.

Service Item Id: bdbcb346a9bb449eb637612fca07abc4

Copyright Text: Nevada Division of Forestry, Davey Resource Group.

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -1.33586112727E7
YMin: 4289889.281300001
XMax: -1.26959990926E7
YMax: 4832123.456200004
Spatial Reference: 102100  (3857)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSFSSolid
Color: [211, 255, 190, 127]
Outline:
Style: esriSLSSolid
Color: [112, 168, 0, 255]
Width: 0
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• Project_Name ( type: esriFieldTypeString, alias: Project_Name, length: 255 )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Shape.STArea() ( type: esriFieldTypeDouble, alias: Shape.STArea() )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape.STLength() )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

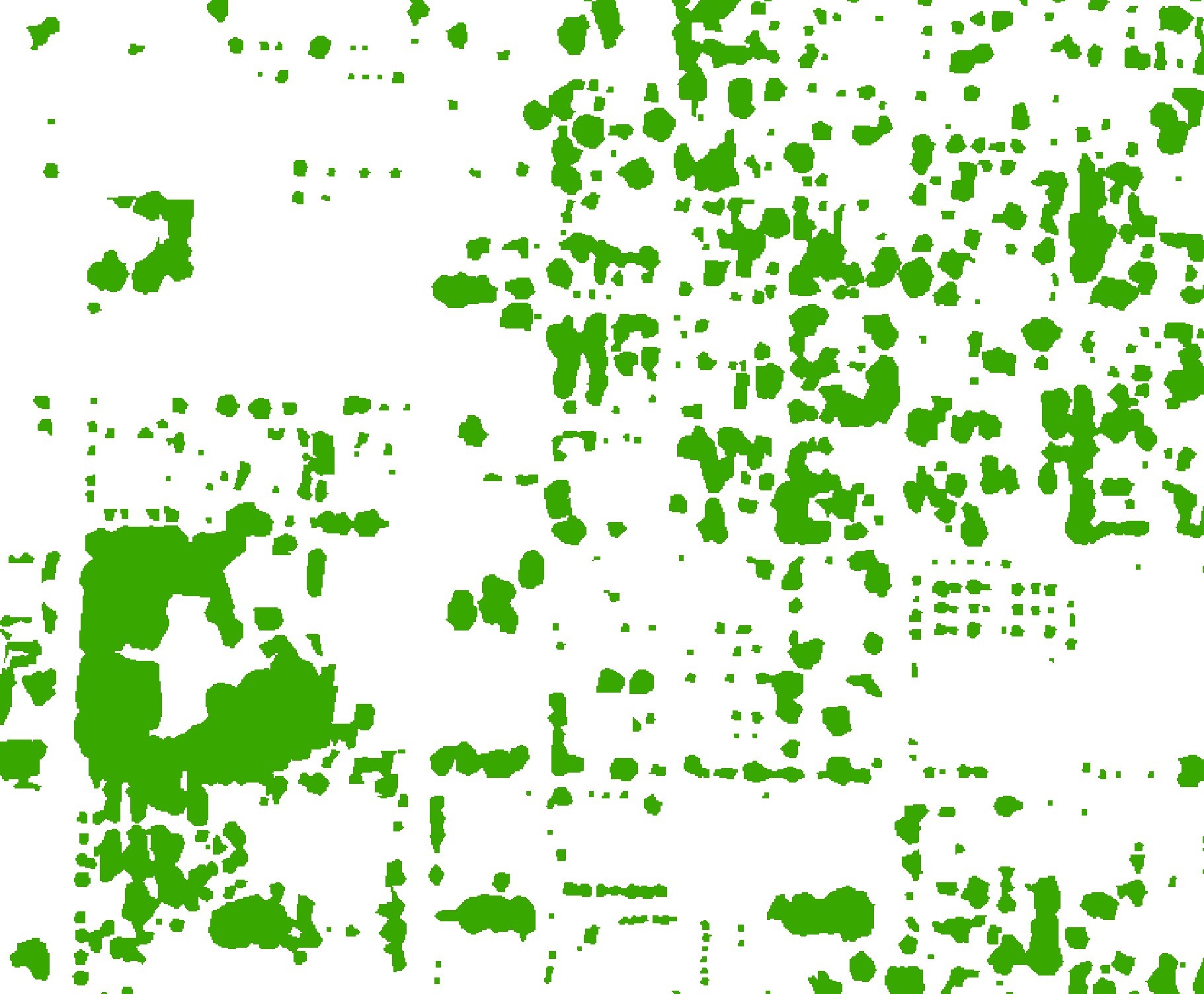

  Iteminfo   Thumbnail   Metadata
